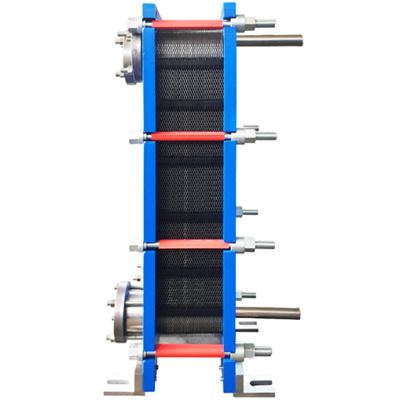

plate frame heat exchanger

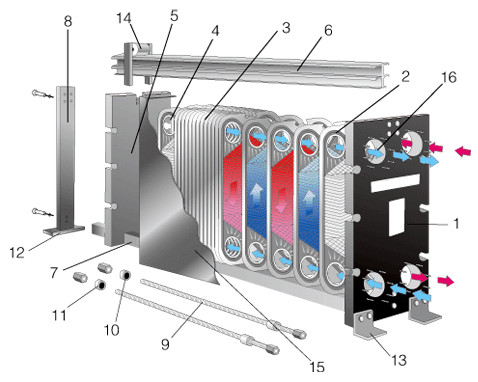

Plate heat exchanger is composed of fixed pressure plate, flexible pressure

plate,top and bottom guid bars,back post, support foot,heat exchanger plate,

gasket,roller, tightening bolt,nut, lock washer and frame foot.1-1601251P6435M.jpg

Principle & Feature

Flat plate heat exchanger is a type of heat exchanger that uses metal plates

to transfer heat between two fluids. This has a major advantage over a

conventional heat exchanger in that the fluids are exposed to a much larger

surface area because the fluids spread out over the plates. This facilitates

the transfer of heat, and greatly increases the speed of the temperature change.

Plate heat exchangers are now common and very small brazed versions are

used in the hot-water sections of millions of combination boilers. The high

heat transfer efficiency for such a small physical size has increased the domestic

hot water (DHW) flow rate of combination boilers. The small plate heat exchanger

has made a great impact in domestic heating and hot-water. Larger commercial

versions use gaskets between the plates.
